Description

The 2050-200i Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells, vaults containing ARV’s and forced mains flowing into gravity fed lines.

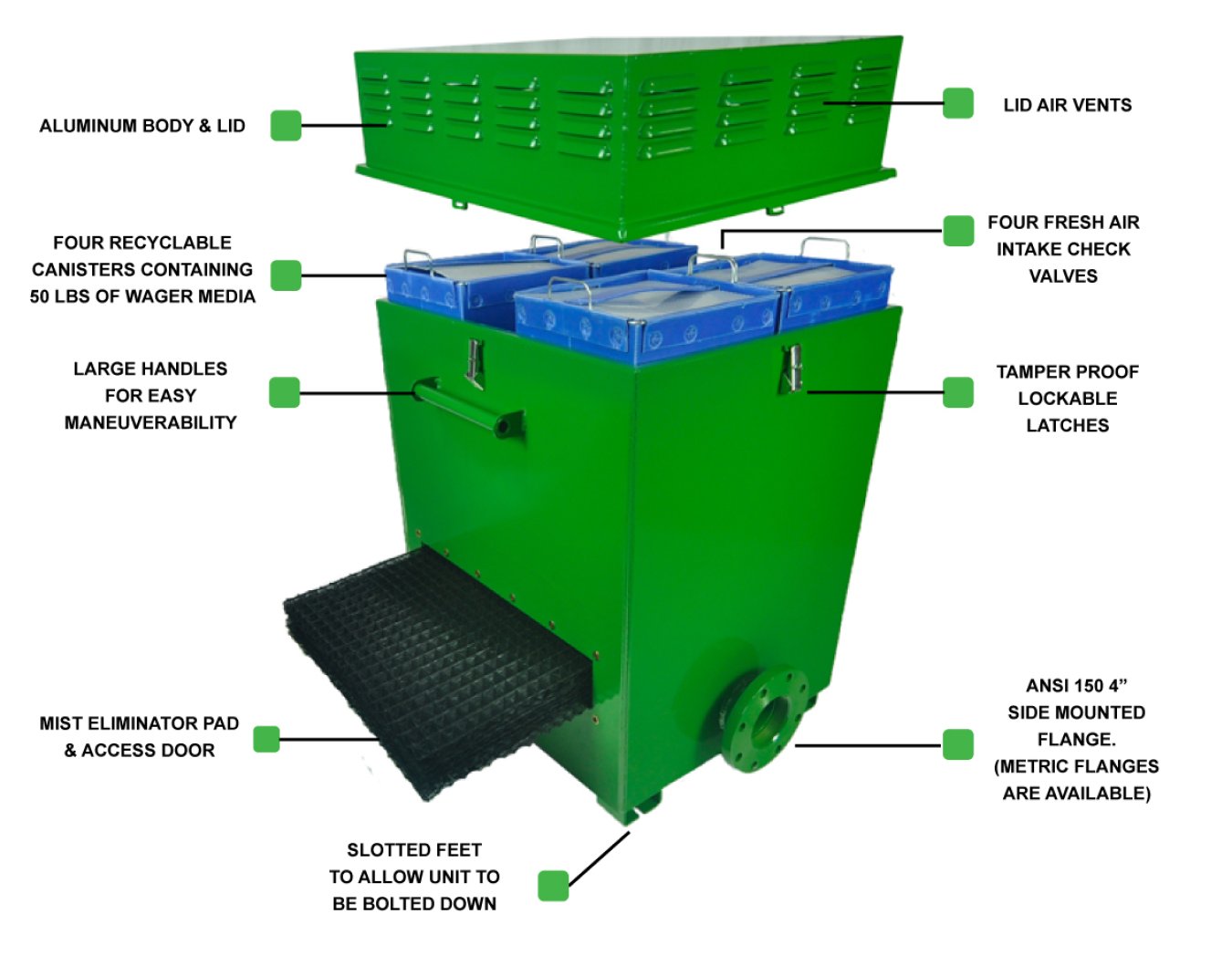

The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment. A mist eliminator pad is incorporated into the unit to prevent damage to the media bed from moisture.

Four 50lb (23kg) canisters of media are included to allow for odor scrubbing where concentrations of H2S gas and accompanying CFM are both very high. Also, the unit contains (4) check valves that allow for fresh air intake directly in the lines or tank without any restrictions from the unit’s media bed. Optional caps may be provided if fresh air intake is not required.

The 2050-200i fits beautifully into residential as well as commercial locations. Each vent has louvered covers to allow for maximum air flow of deodorized air. Every vent is equipped with lockable latches to prevent tampering.

Estimated CFM and PPM:
CFM 121-220, PPM 75-200

Afbeelding
