The 2050-1350 Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells,vaults containing ARV’s and forced mains flowing into gravity fed lines. The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment.

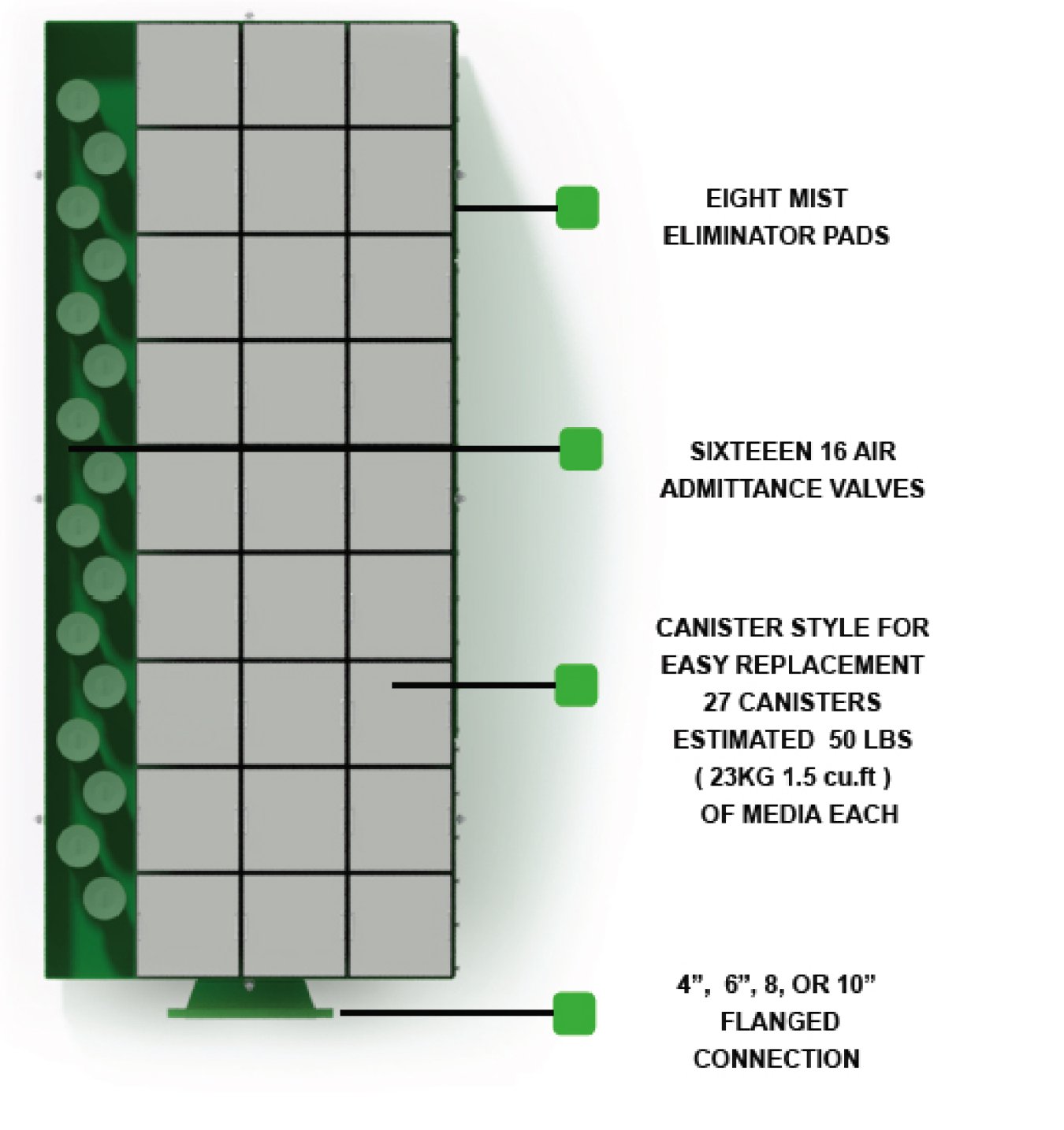

Each unit contains (27) canisters with a total of approxmentaly 1,350lbs (612kg- 40.5 cu.ft) of media to allow for odor scrubbing where concentrations of H2S gas and accompanying CFM are both very high. Eight (8) mist eliminator pads are incorporated into the unit in order to prevent moisture from entering into the media bed.
The 2050-1350 contains (16) check valves that allow for fresh air intake directly in the lines or tank without any restrictions from the unit’s media bed. Optional caps may be provided if fresh air intake is not required.
It is available with a 4”, 6”, 8 or 10” outlet. Optional metric flanges are available.
Estimated CFM and PPM:
available upon request
